Measuring Help
EMAILING PICTURES: Pictures of your tub really helps us to help you, but don't worry if that is not an option. Templates may be required on odd shapes. Don't worry, we will help you with that too. All you would need is a 2ML painters plastic from any hardware store, a black marker and help from a partner if the tub is too large.
How to ...

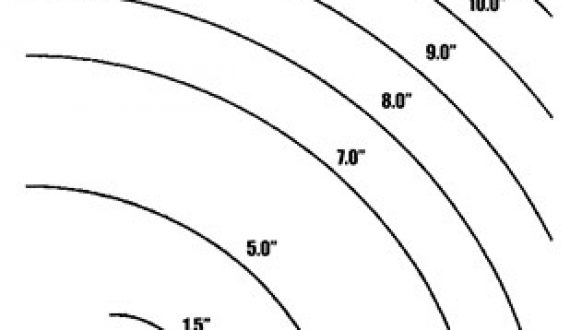

How to Measure a Radius Aluminum Spa Cover

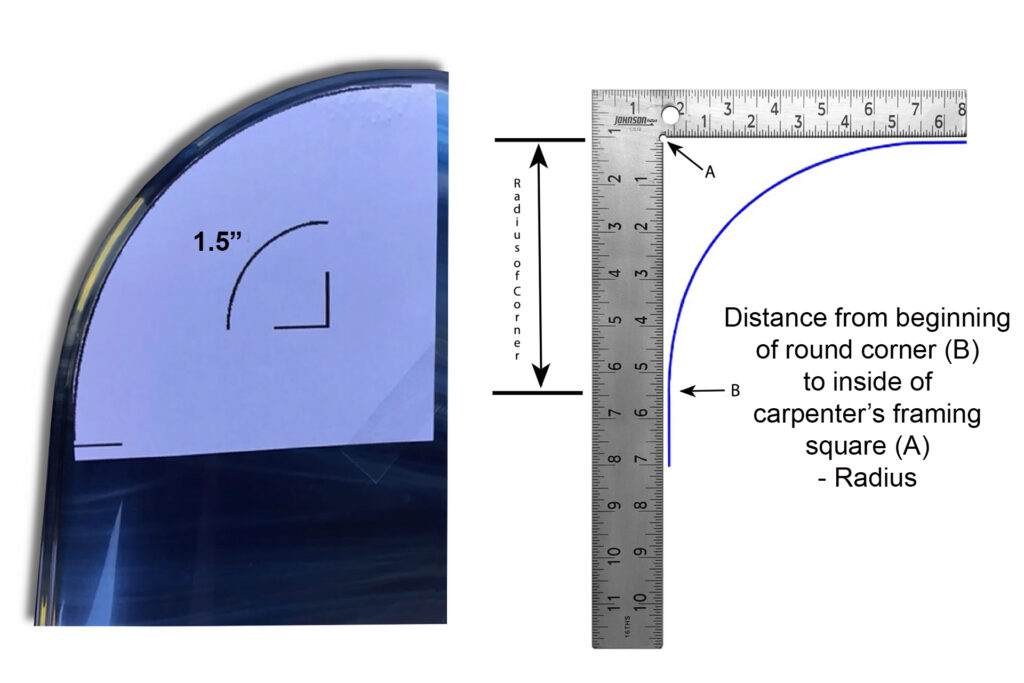

With a carpenter’s framing square, you need to “square” out the corner. What will result is the framing square representing where the corner would be if the corners were not rounded.
As illustrated below, after “squaring” out the corner, measure along the framing square the distance from the inverse midpoint (A) and the end beginning of the rounded corner (B).

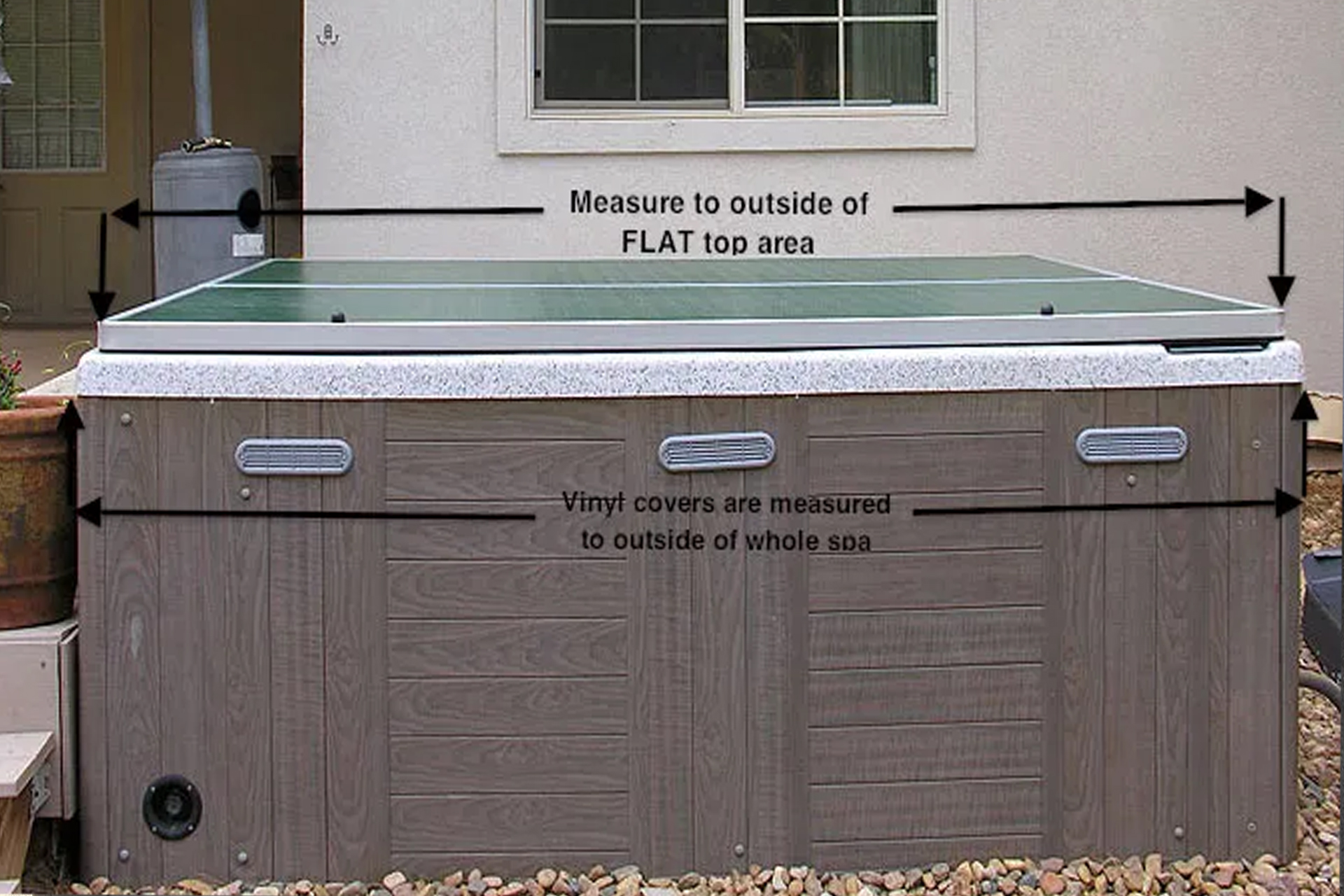

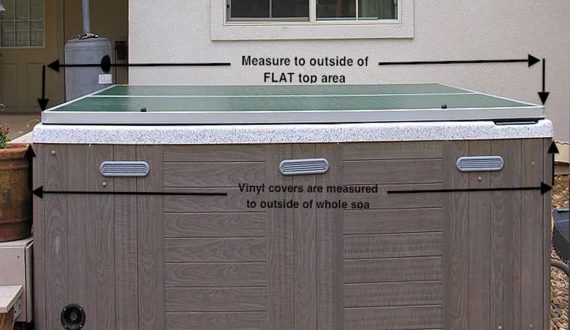

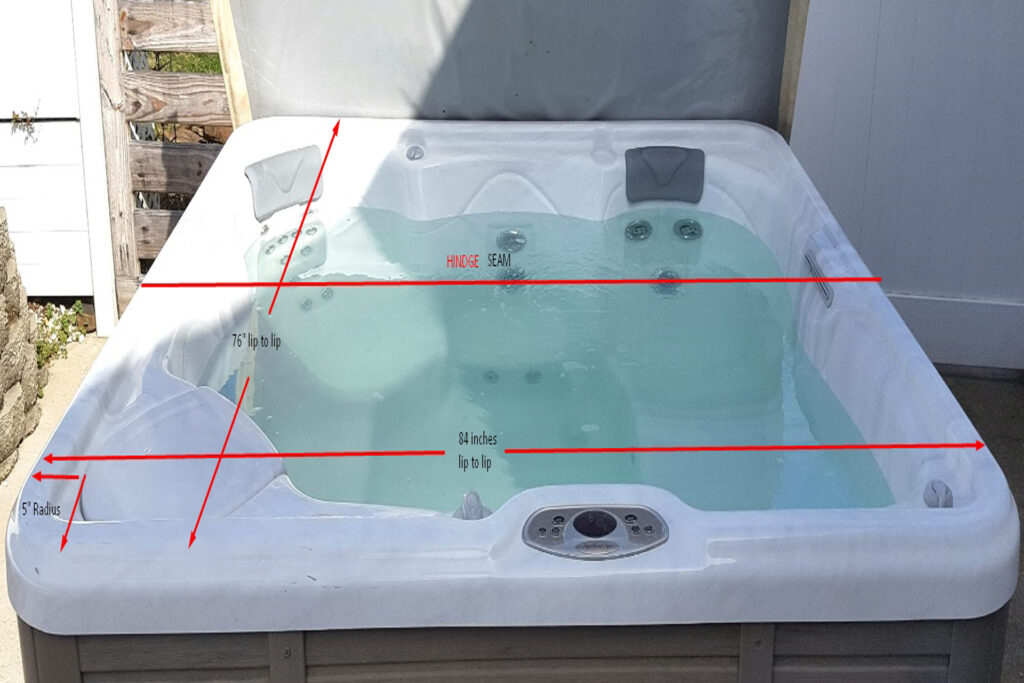

MEASURE AND RECORD OUTSIDE DIMENSIONS IN INCHES
Measure to the outside of the flat top areas.
More Measuring Help

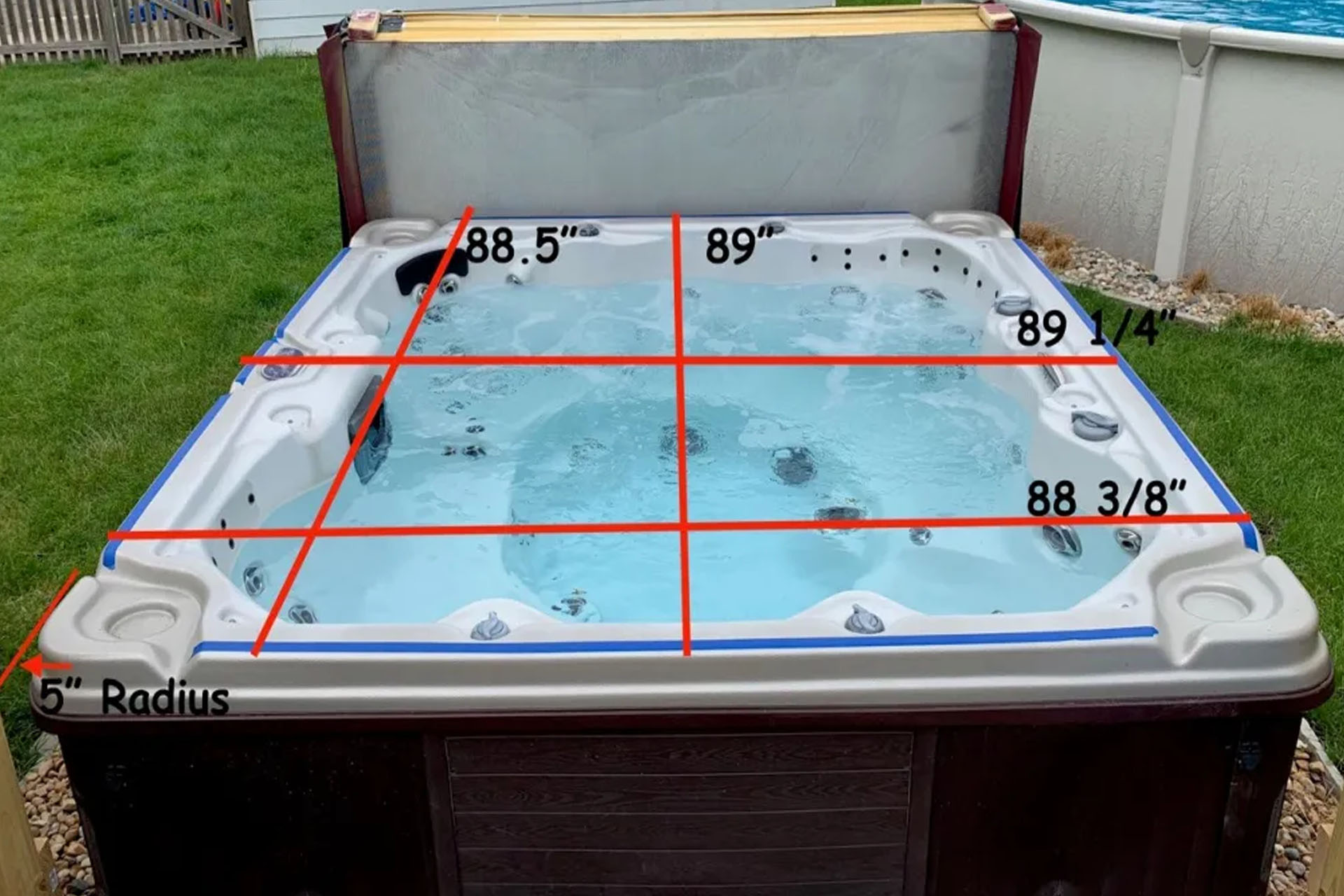

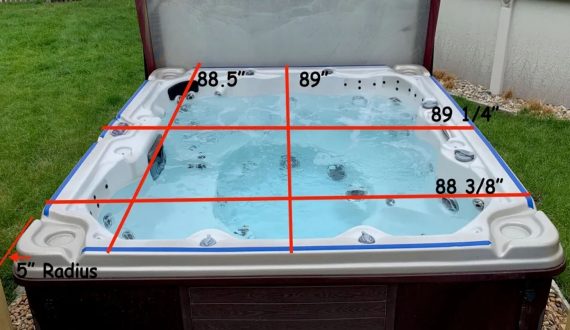

You can use painters tape to help you see where the cover will seal on the top edges. Measure down center points on the tub. Final size 89″ x 89″ w/ 5″ Radius.
Measuring Help

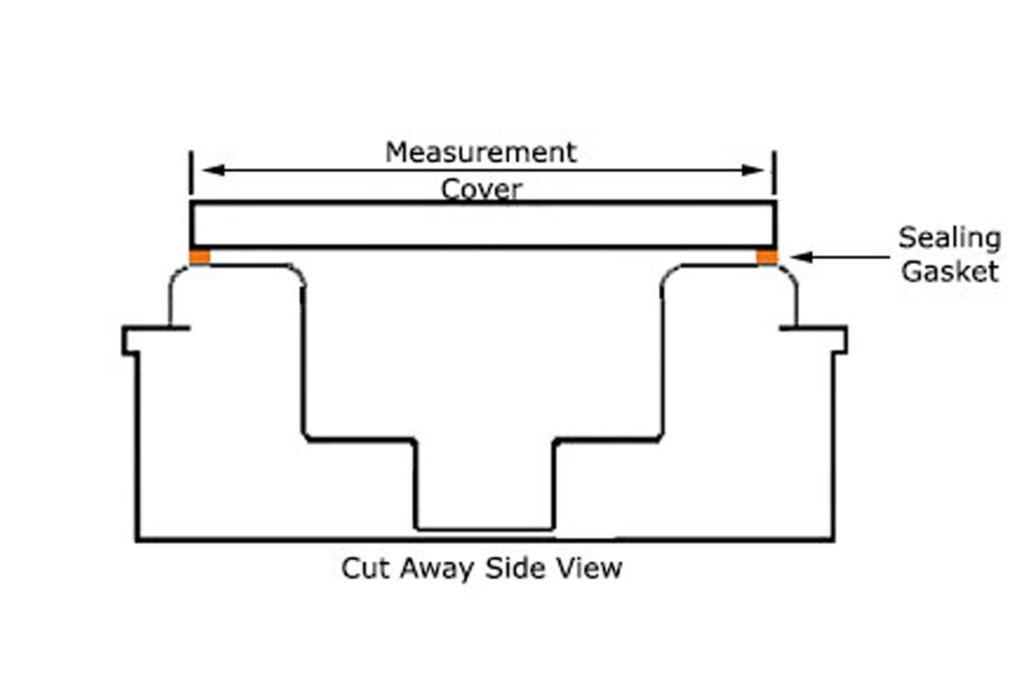

The overall dimension of the cover is less than the overall dimension of the spa. This is for proper gasket sealing.
Measuring Help

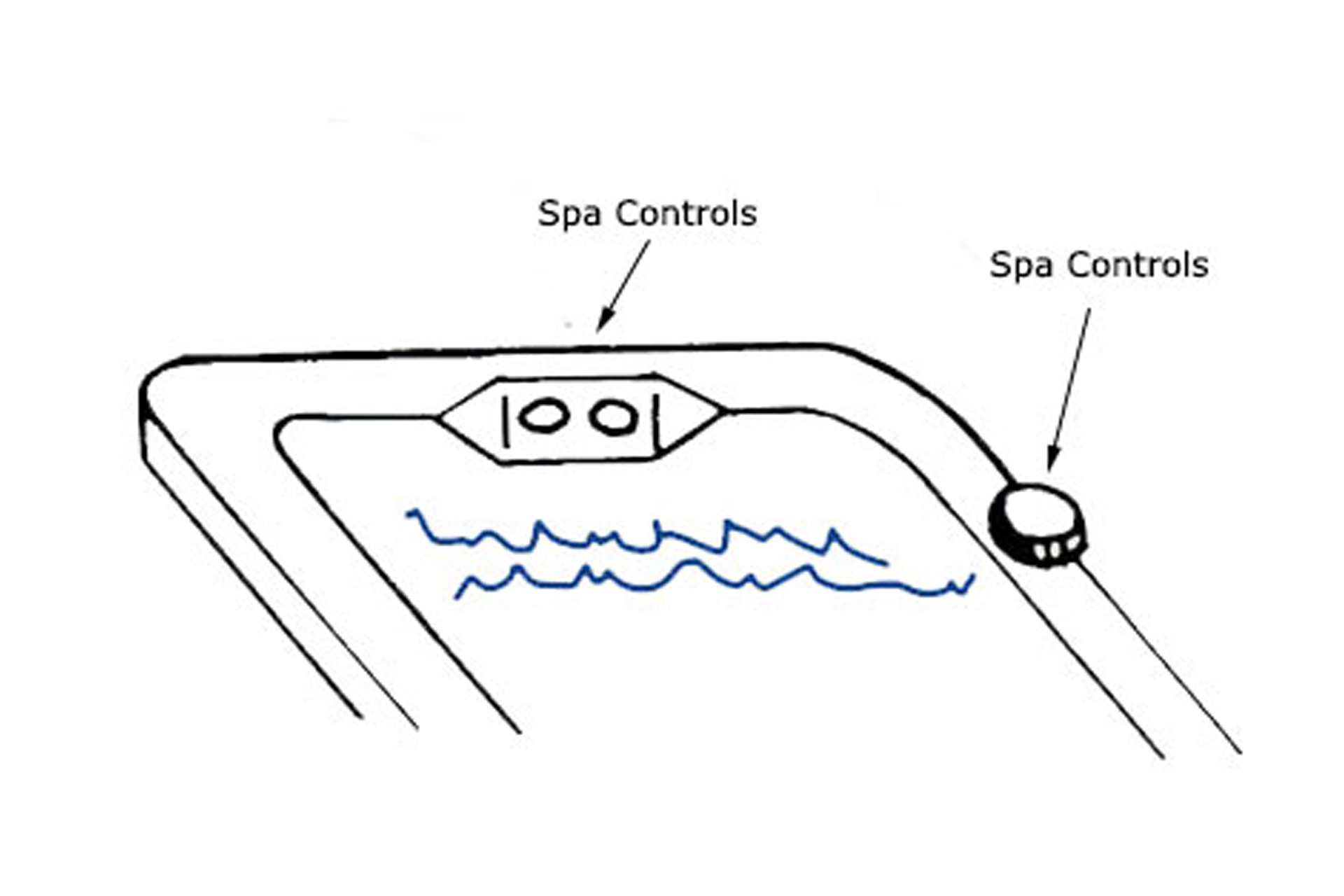

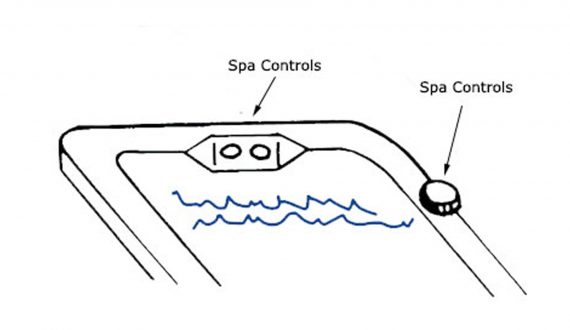

Note any and all controls on the Spa Lip.
